2.5Gb/s 40km SFP Transceiver (Multi-rate) Hot Pluggable, Duplex LC, +3.3V, 1550nm, DFB-LD, Single-mode, DDM FS-1524-40D

Features:

• Up to 2.67Gb/s Data Links
• Hot-Pluggable
• Duplex LC connector
• Up to 40km on 9/125μm SMF
• 1550nm DFB laser transmitter

• Single +3.3V Power Supply
• Monitoring Interface Compliant with SFF-8472
• Maximum Power <1W

• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
• RoHS compliant and Lead Free

Applications:

• SONET OC-48 / SDH STM -16
• SONET OC-12 / SDH STM -4
• SONET OC-3 / SDH STM -1
• Gigabit Ethernet

• 1x/2xFibre Channel

Description:

FS-1524-40D Transceivers are a high performance, cost effective module which have a duplex LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1550 nm DFB laser, up to 16dB link budge ensure this module SONET OC-48 / SDH STM -16 40km application.

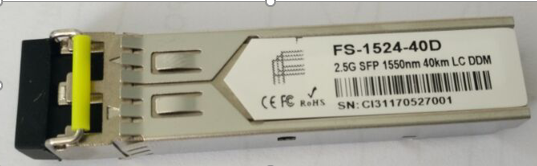

2.5Gb/s 40km SFP Transceiver (Multi-rate) Hot Pluggable, Duplex LC, +3.3V, 1550nm, DFB-LD, Single-mode, DDM FS-1524-40D Images
